Best quality Farm Fence - Galvanized or AIASI 430 Razor Barbed Wire BTO Type – JIKE

Feature:

Modern and economical way as perimeter barriers against illegal invasion to restricted areas.
Attractive design in harmony with natural beauty.
Fabricated from hot-dipped galvanized steel or stainless steel, high resistance to corrosion.
Sharp blade with multiple profiles has piercing and gripping action, which performs psychological deterrent to intruders.
Abrasion resistance for long service life.
Enclosed high tensile core wire makes it difficult to cut with standard tools.
Provides much better security compared with traditional barbed wire.
Easy installation and low maintenance.

Specification:

Dimensions:
*Standard wire diameter: 2.5 mm (± 0.10 mm).
*Standard blade thickness: 0.5 mm (± 0.10 mm).
*Tensile strength: 1400–1600 MPa.
*Zinc coating: 90 gsm – 275 gsm.
*Coil diameter range: 300 mm – 1500 mm.
*Loops per coil: 30–80.
*Stretch length range: 4 m – 15 m.

Type:

1.Spiral Razor Wire: Spiral razor wire is the simplest pattern in a barbed tape coil where there are no clips binding adjacent loops and each coil loop is left free in its natural spiral. Spiral razor wire can also be used as straight runner wire when stretched totally.

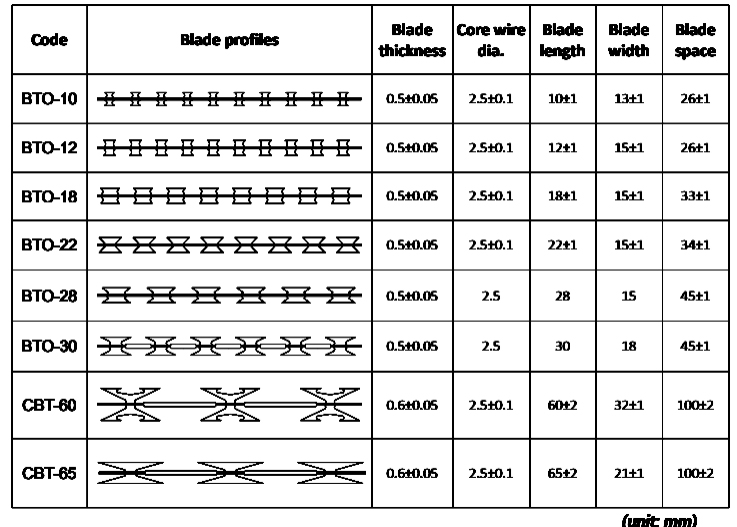

Blade Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65.

2.Concertina Wire: Concertina wire is fabricated by attaching adjacent loops of helical coils to one another at specified points on the circumference, forming an accordion-like configuration. In this way, there are no gaps of sufficient size for persons to squeeze through. It provides unrivaled security and is widely used in applications such as border barriers and military bases.
Blade Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65.

3.Flat Wrap Razor Wire: Flat wrap razor wire is fabricated by using single strand razor wire which is then clipped to create flat sheet in vertical direction. The flat wrap coil can be used to upgrade any existing fence or brick wall, which is an ideal alternative to common concertina razor wire where high security is required but with space restriction.

Blade Type: BTO-10, BTO-22, BTO-30
Overall Diameter: 450 mm, 600 mm, 700 mm, 900 mm, 1000 mm.
Length: 15 meters

4.Razor Mesh: Razor mesh is one of the security fencing products that can be used to protect industrial, commercial and government institutions. The typical feature of razor mesh is that it’s a complete security fence requiring no additional top options when installed.

Razor Mesh Type: High density: 75 × 150 mm.
Low density: 150 × 300 mm.
Rectangular mesh: 100 × 150 mm.
Panel Size: 1.2 m × 6 m, 1.8 m × 6 m, 2.1 m × 6 m, 2.4 m × 6 m.
Standard Blade Type: BTO-22, BTO-30.

Application:

Factory Picture:

Packing & Shipping:
