Stainless Steel Wedge Wire Johnson Screen for Water Well Drilling

Short Description:

Wedge wire screen is a metal mesh element widely used in screening, filtration, dehydration and desliming operations for sieving and filtration. It has high strength, rigidity and load carrying capacity and can be made into a variety shapes of rigid screening filters.

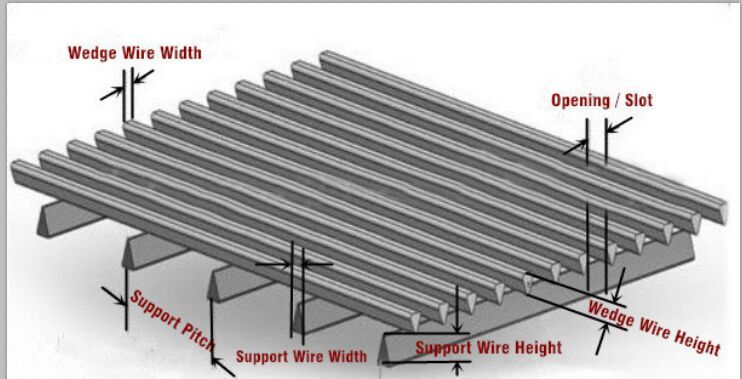

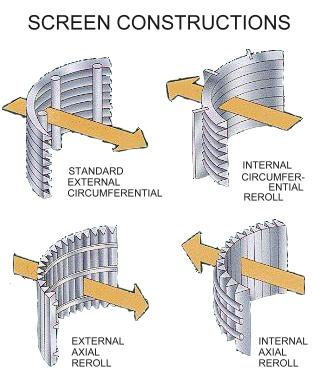

The wedge wire screen consists of surface profiles and support profiles. Surface profiles, usually v-shaped wires, are wrapped and welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows. The direction of the flow is determined by the position of V-shaped wires (surface profiles) in relation to the support profiles. Wedge wires screens are either flow-out-to-in or flow-in-to-out.


Product Detail

Product Tags

Wedge wire screen is divided into: cylindrical screen and flat screens.

The cylinder screen mainly composed of V wire and support rod,each cross point connected in welding,solid structure,good mechanical properties.V-shaped cross-section to avoid clogging,while ensuring the smooth flow of water.Continuous slits have a greater flow areas,while reducing ground water penetration speed,avoiding sand under large pressure into the tube,better filtration properties of sand,the gap may be varied depending on the geological,mainly for and deep well pump,submersible pump supporting the use.

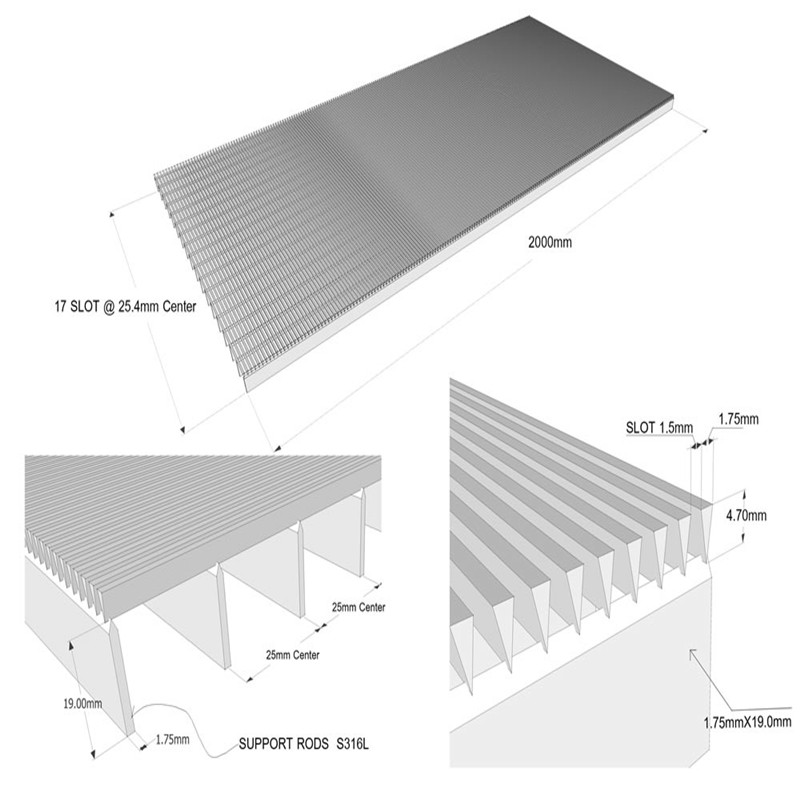

The flat screens have good filtration and dehydration in the solid- liquid separation.we can produce for you a different width ,length,slit width and wedge wire size according to your requirements and the amount of filtration filter material.Sieve is mainly used to sewage treatment,water purification laundry,poultry,fish,fruit and vegetable waste water treatment industry.

Material:Stainless Steel 304、304L、316、316L、904L、2205、2507、hastelloy.

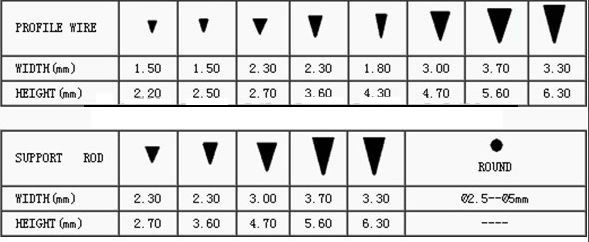

Wedge Wire Screen

WEDGE WIRE SCREEN (8)

singleimg

sfanujg

Related Pictures

Wedge Wire Screensingloimeg (3)
Wedge Wire Screensingloimeg (5)
Wedge Wire Screensingloimeg (4)
Wedge Wire Screensingloimeg (6)
Wedge Wire Screensingloimeg (1)
Wedge Wire Screensingloimeg (2)
